Compact and Powerful

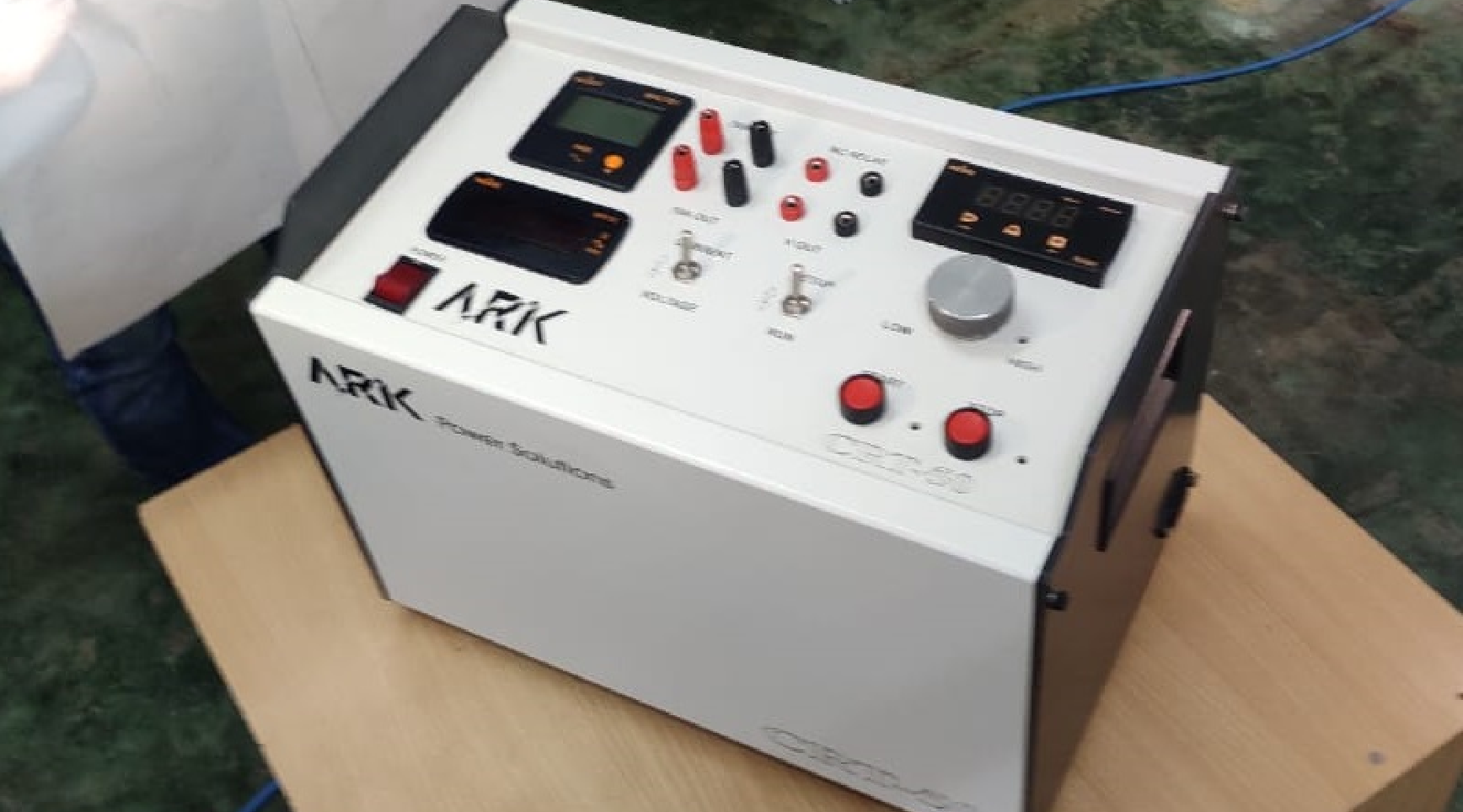

Suitable for testing different types of relays viz, power, voltage, and current

Secondary testing of all types of single-phase protection relays

For use in high-voltage substations and industrial environments

0 to 100 A output current

Output Voltage 0-250 V AC, 0-270 V DC

Dimensions: 26 (W) x 42 (L) x 32 (H) Cms

Weight: 20 kg

Field-testing 1 phase & 3 phase watthour meters at 50% & 100% power factor.

Selector switch with variable autotransformer provides continuous adjustment of the load current

Input: Primary Voltages 240 V, 1φ, 50 Hz

Output: Current Range: 0 to 2.5/5/16 A at 50% or 100% power factor.

Reliable with protection features, safety and Electromagnetic compatibility

Different power supply configurations and output combinations

Variable Voltage Output: 0-250V DC

Load Current: 25A Max

Voltage Ratio Test

Magnetizing Current Test

Magnetic Balance Test

Vector Group Test

Short Circuit Test
